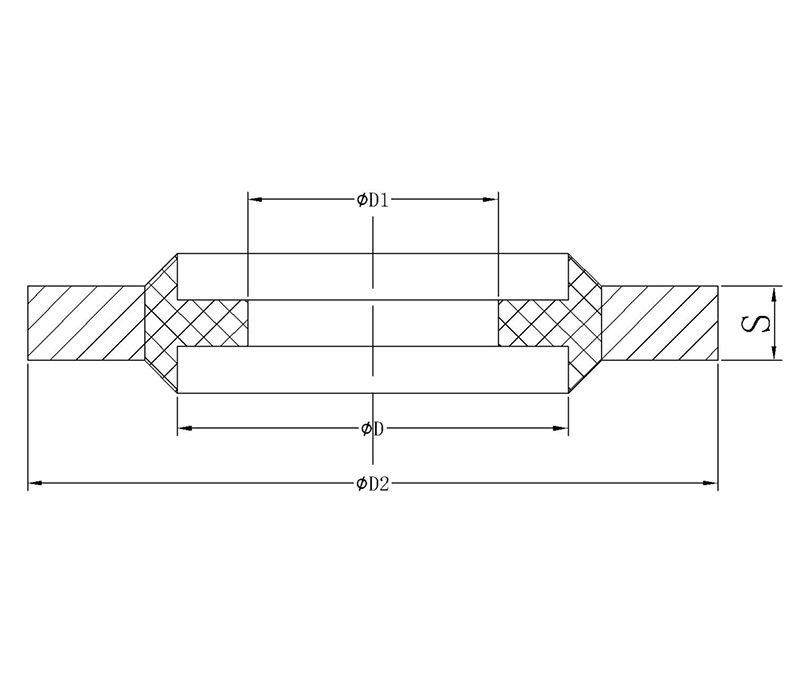

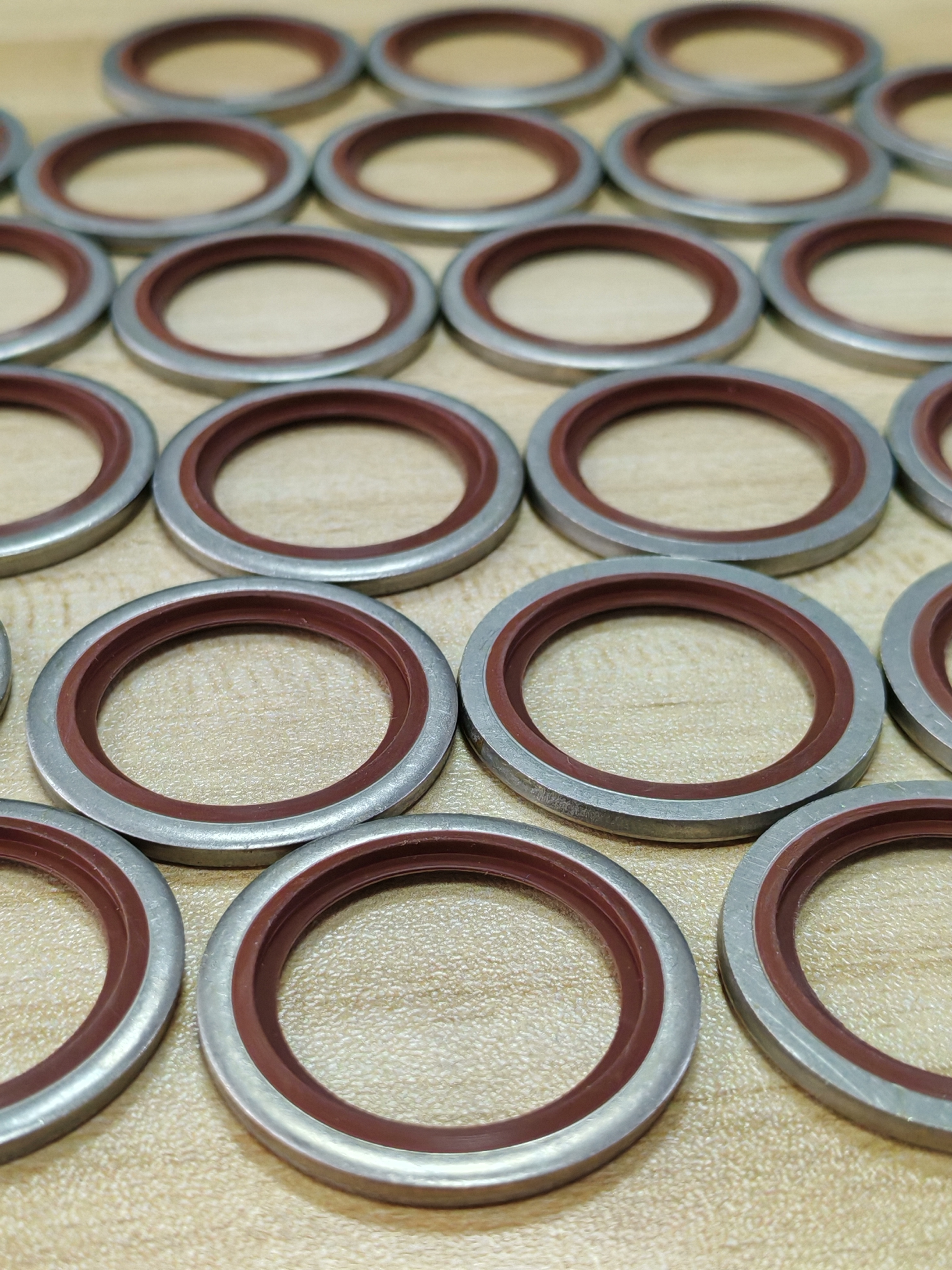

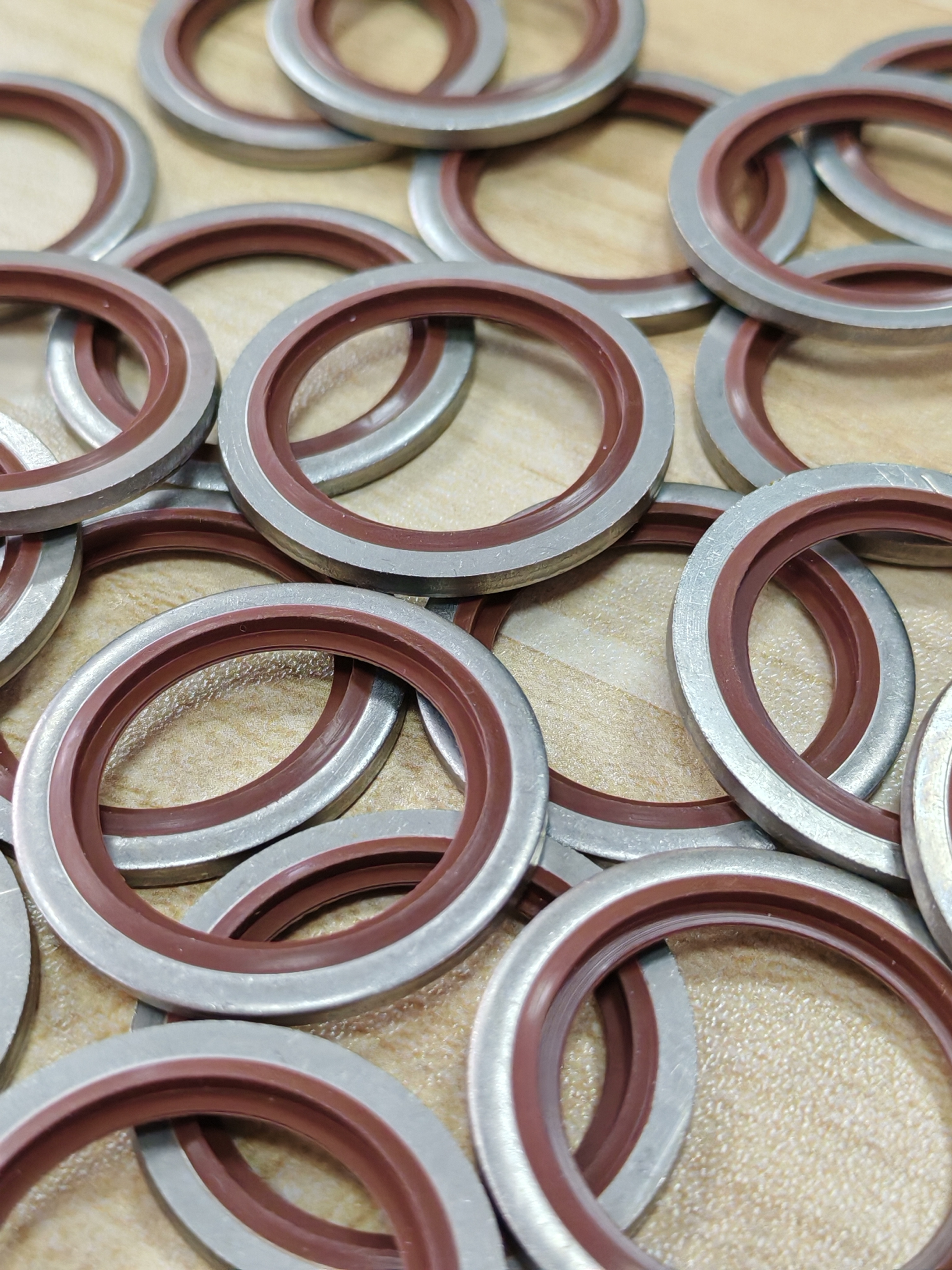

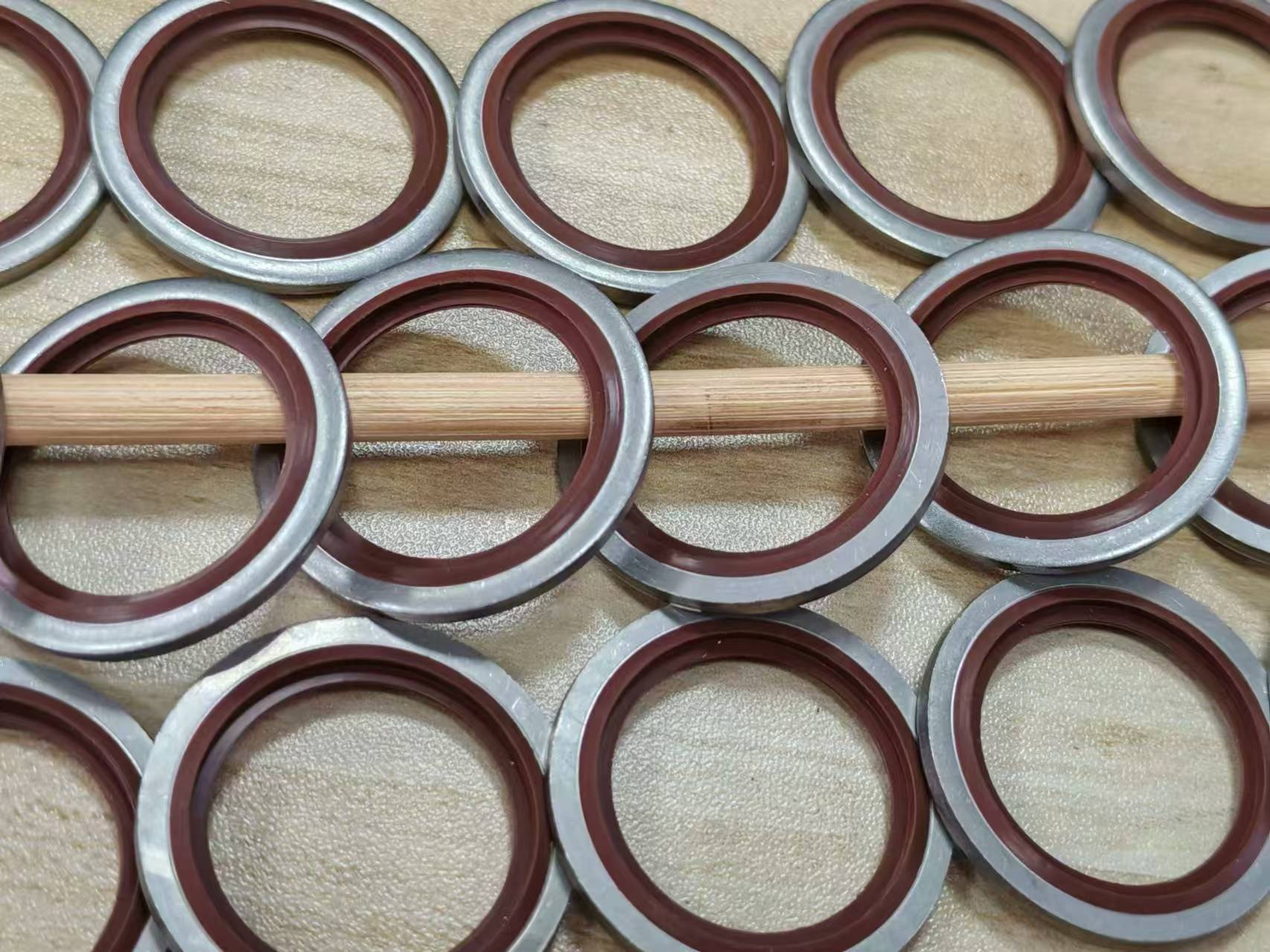

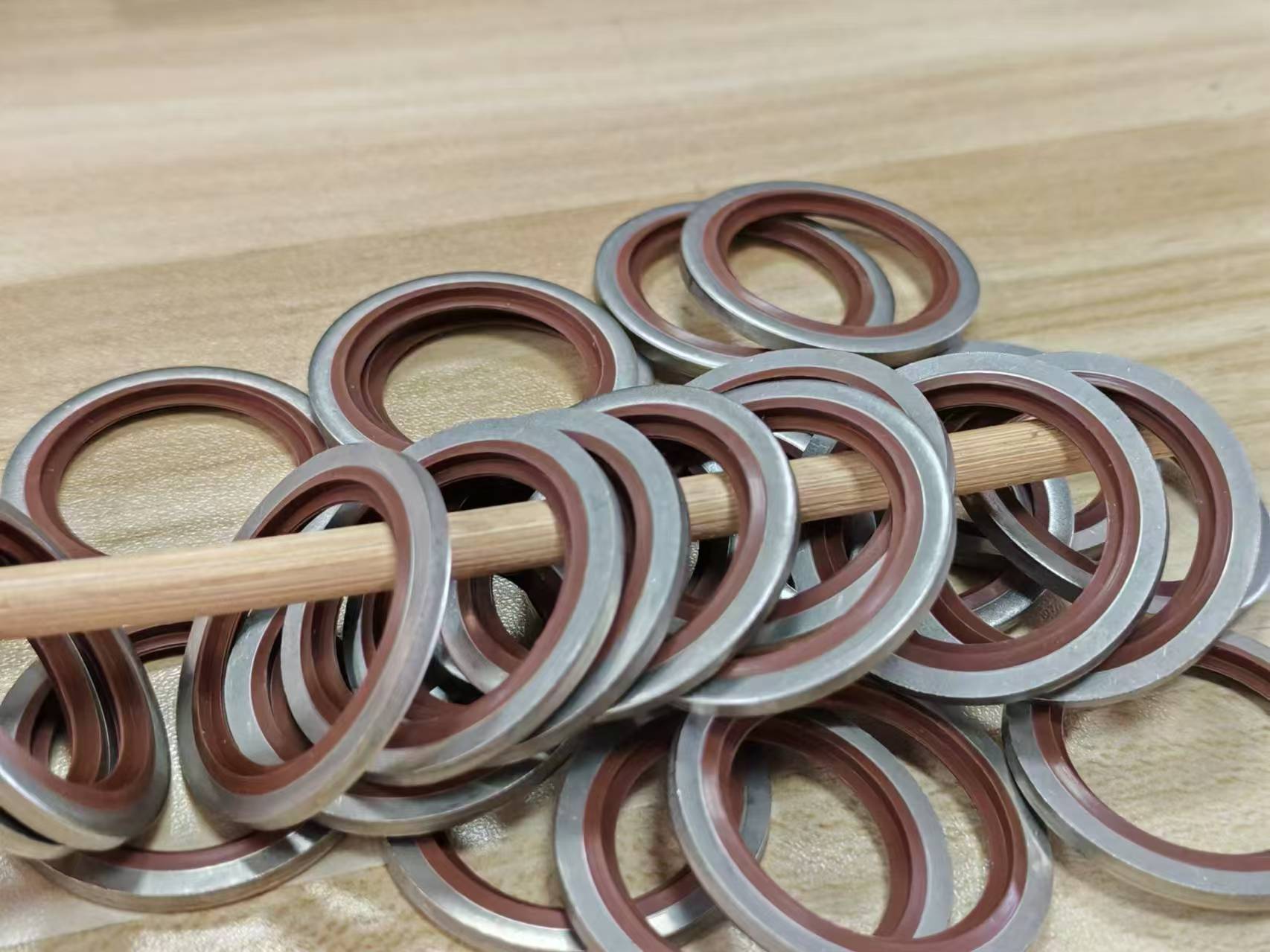

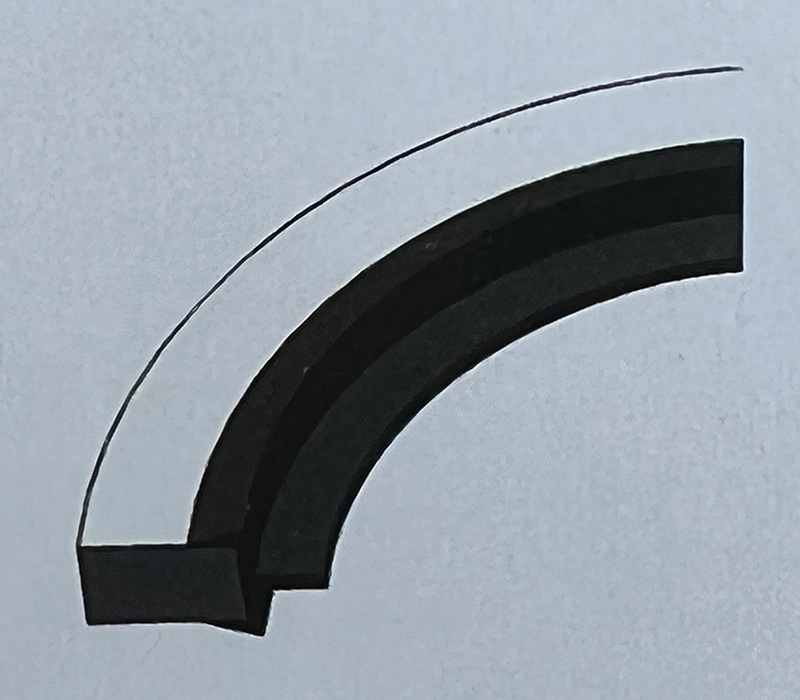

Dimensions
Aritish(A)
Pipe Thread | ||||||
Items NO: |
Intended for
thread
|
D(±0.1) | D2(+0.13) | S | D1 | |
HL01-820-B | G1/8 | 10.37 | 15.88 | 2(±0.1) | 8.26 | (±0.25) |
HL01-821-B | G1/4 | 13.74 | 20.57 | 11.18 | ||
HL01-823-B | G3/8 | 17.28 | 23.8 | 14.76 | ||
HL01-825-B | G1/2 | 21.54 | 28.58 | 2.34(+0.26) | 18.24 | |
HL01-826-B | G5/8 | 23.49 | 31.75 | 20.27 | ||
HL01-827-B | G3/4 | 27.05 | 34.93 | 23.83 | ||
HL01-830-B | G1 | 33.89 | 12.8 | 3.25(+0.26) | 29.92 | (±0.37) |
HL01-832-B | G1-1/4 | 42.93 | 52.38 | 38.45 | ||
HL01-833-B | G1-1/2 | 48.44 | 58.6 | 44.45 | ||
HL01-836-B | G2 | 60.58 | 73.03 | 56.26 | ||
HL01-838-B | G2-1/4 | 66.68 | 79.5 | 62.36 | ||
HL01-839-B | G2-1/2 | 76.08 | 90.17 | 71.5 |
BSP(G)
Pipe Thread | |||||
Items NO: |
Intended for
thread
|
D(±0.1) | D2(+0.13) | S(±0.1) | D1(±0.2) |
HL01-820-A | G1/8 | 10.37 | 15.88 | 2 | 8.56 |
HL01-821-A | G1/4 | 13.74 | 20.57 | 11.45 | |
HL01-823-A | G3/8 | 17.28 | 23.8 | 14.96 | |
HL01-825-A | G1/2 | 21.54 | 28.58 | 2.5 | 18.64 |
HL01-826-A | G5/8 | 23.49 | 31.75 | 20.7 | |
HL01-827-A | G3/4 | 27.05 | 34.93 | 24.13 | |
HL01-830-A | G1 | 33.89 | 12.8 | 29.92 | |
HL01-832-A | G1-1/4 | 42.93 | 52.38 | 38.45 | |
HL01-833-A | G1-1/2 | 48.44 | 58.6 | 44.45 | |
HL01-836-A | G2 | 60.58 | 73.03 | 56.26 |
Suitable for metric thread sealing
Items NO: |
Nominal
Diameter
|
Dimensions | ||||
D1(±0.1) | D(±0.1) |
D2
|
S(±0.1) | |||
HL02-M5 | M5 | 4.5 | 5.7 | 9 | (±0.1) | 1 |
HL02-M5 | M5 | 4.5 | 5.7 | 10 | 1 | |
HL02-M6 | M6 | 4.7 | 6.7 | 10 | 1 | |
HL02-M6 | M6 | 4.7 | 6.7 | 11.8 | 2 | |
HL02-M8 | M8 | 6.4 | 8.7 | 13.8 | 2 | |
HL02-M10 | M10 | 8.05 | 10.7 | 15.88 | 2 | |
HL02-M12 | M12 | 9.73 | 12.7 | 17.8 | 2 | |
HL02-M14 | M14 | 11.38 | 14.7 | 19.9 | (±0.2) | 2 |
HL02-M16 | M16 | 13.41 | 16.7 | 21.8 | 2 | |
HL02-M18 | M18 | 14.76 | 18.7 | 24.8 | 2 | |
HL02-M20 | M20 | 16.76 | 20.7 | 27.8 | 2 | |
HL02-M22 | M22 | 18.74 | 22.7 | 29.8 | 2 | |
HL02-M24 | M24 | 20.11 | 24.7 | 31.8 | 2 | |
HL02-M27 | M27 | 23.36 | 27.7 | 34.8 | 2 | |
HL02-M30 | M30 | 25.7 | 30.7 | 37.8 | 2 | |
HL02-M33 | M33 | 28.7 | 33.7 | 41.8 | 2 | |
HL02-M36 | M36 | 31.1 | 36.7 | 45.8 | 2 | |
HL02-M39 | M39 | 34.1 | 39.7 | 49.8 | 2 | |
HL02-M42 | M42 | 36.5 | 42.7 | 52.8 | 2 | |
HL02-M45 | M45 | 69.5 | 45.7 | 55.8 | 2 | |
HL02-M48 | M48 | 41.9 | 48.7 | 59.8 | 2 |
