Dimensions
|
JB982-77 |
Unit: mm |
| Items NO: |

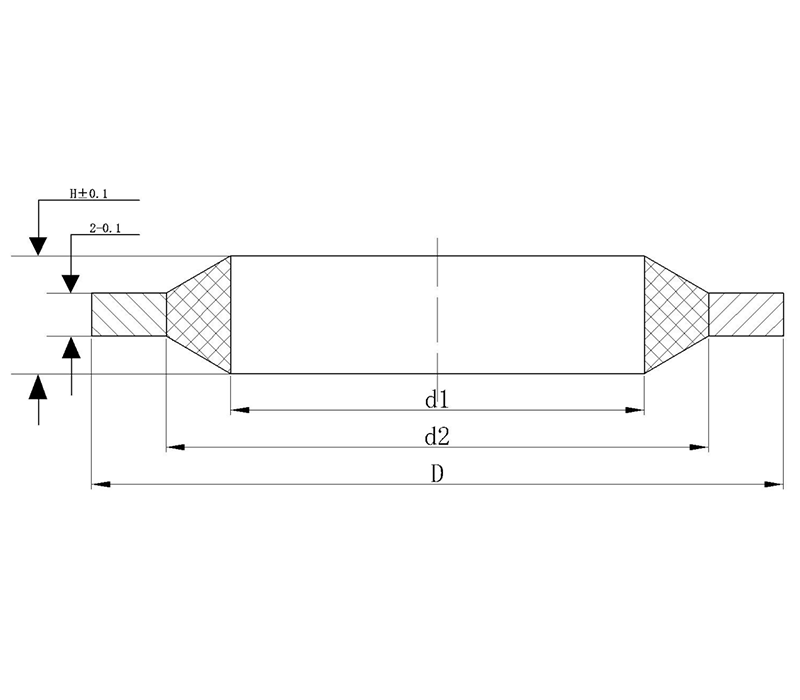

Nominal Diameter
|
d1 | d2 | D | H±0.1 |
Allowable Variation
of Hole d2
|
Applicable Thread
Dimensions
|
||||
| HL04-M4 | 4 | 4.3 | ±0.12 | 5.3 |
+0.24
0
|
7.5 |
0
-0.24
|
2.1 | 0.1 | M4 | |
| HL04-M6 | 6 | 6.4 | 8 | 12 | M6 | ||||||
| HL04-M8 | 8 | 8.4 | 10 | 14 | 2.7 | M8 | |||||
| HL04-M10 | 10 | 10.4 | 12 | 16 | M10(G1/8") | ||||||
| HL04-M12 | 12 | 12.4 | 14 | 18 | M12 | ||||||
| HL04-M14 | 14 | 14.4 | 16 | 20 |
0
-0.28
|
M14(G1/4") | |||||
| HL04-M16 | 16 | 16.4 | 18 | 22 | M16 | ||||||
| HL04-M18 | 18 | 18.4 | 20 |
+0.28
0
|
25 | M18(G3/8") | |||||
| HL04-M20 | 20 | 20.5 | ±0.14 | 23 | 28 | M20 | |||||
| HL04-M22 | 22 | 22.5 | 25 | 30 | M22(G1/2") | ||||||
| HL04-M24 | 24 | 24.5 | 27 | 32 |
0
-0.34
|
0.15 | M24 | ||||
| HL04-M27 | 27 | 27.5 | 30 | 35 | M27(G3/4") | ||||||
| HL04-M30 | 30 | 30.5 | 33 |
+0.34
0
|
38 | M30 | |||||
| HL04-M33 | 33 | 33.5 | ±0.17 | 36 | 42 | M33(G1") | |||||
| HL04-M36 | 36 | 36.6 | 40 | 46 | 2.9 | M36 | |||||
| HL04-M39 | 39 | 39.6 | 43 | 50 | M39 | ||||||
| HL04-M42 | 42 | 42.6 | 46 | 53 |
0
-0.4
|
M42(G11/4") | |||||
| HL04-M45 | 45 | 45.6 | 49 | 56 | M45 | ||||||
| HL04-M48 | 48 | 48.7 | 52 |
+0.4
0
|
60 | M48(G11/2") | |||||
| HL04-M52 | 52 | 52.7 | ±0.2 | 56 | 66 | M52 | |||||
| HL04-M60 | 60 | 60.7 | 64 | 75 | M60(G2") | ||||||
