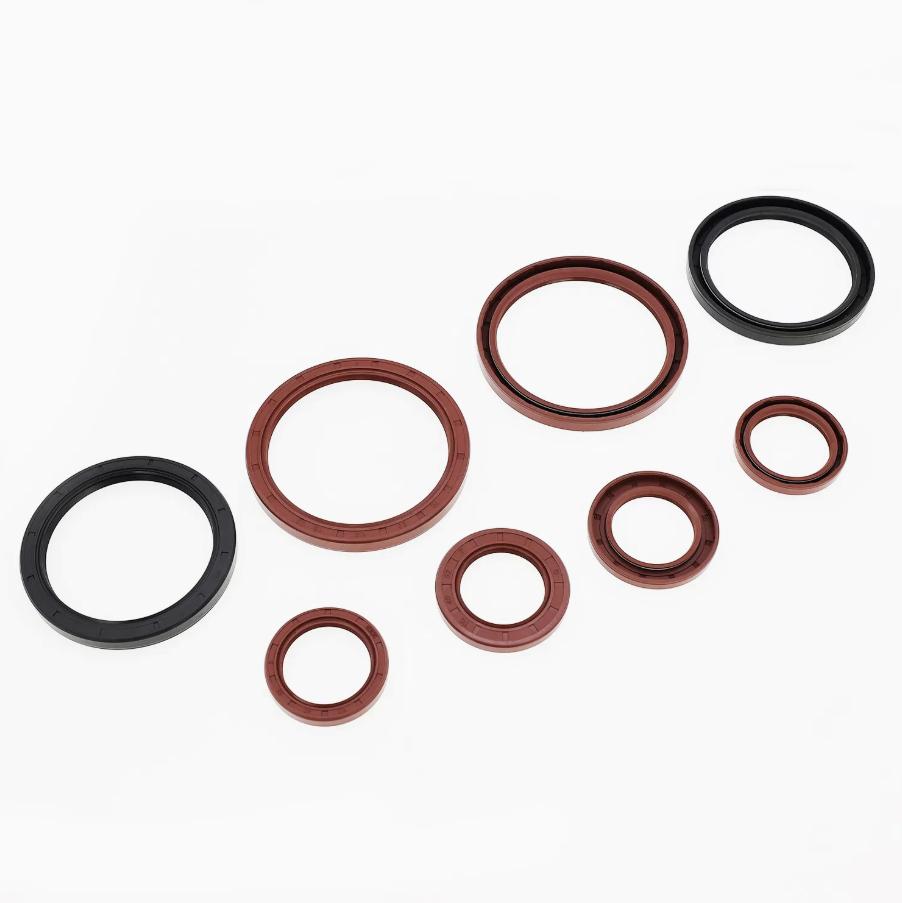

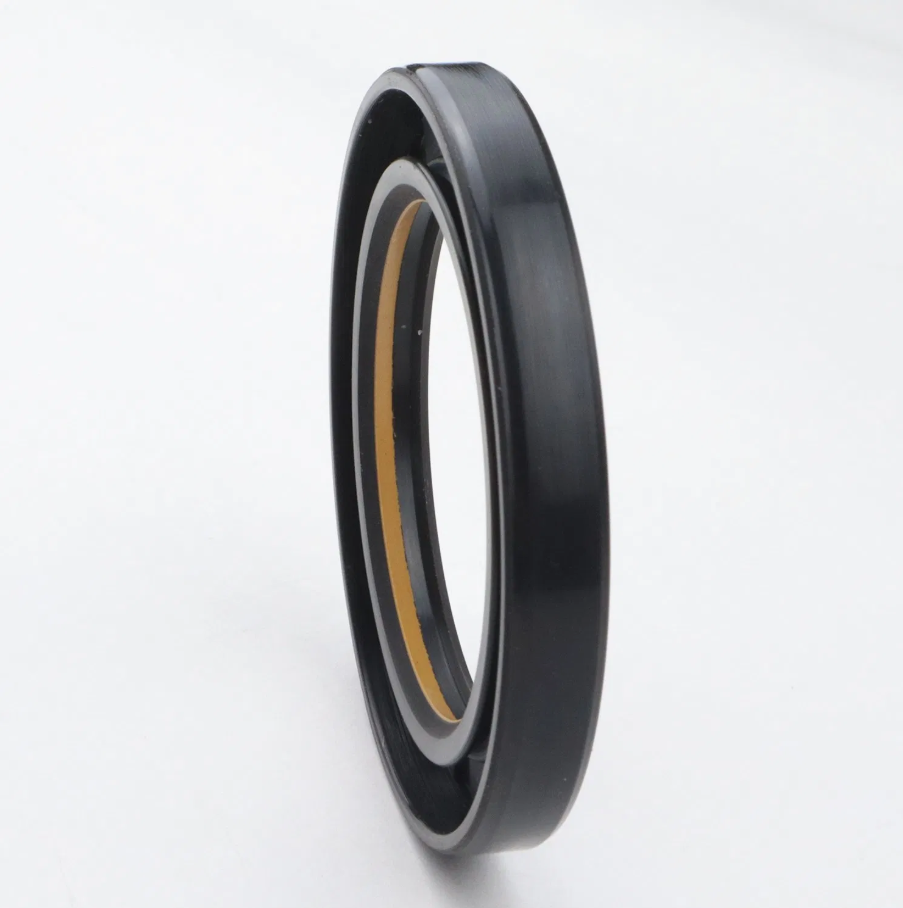

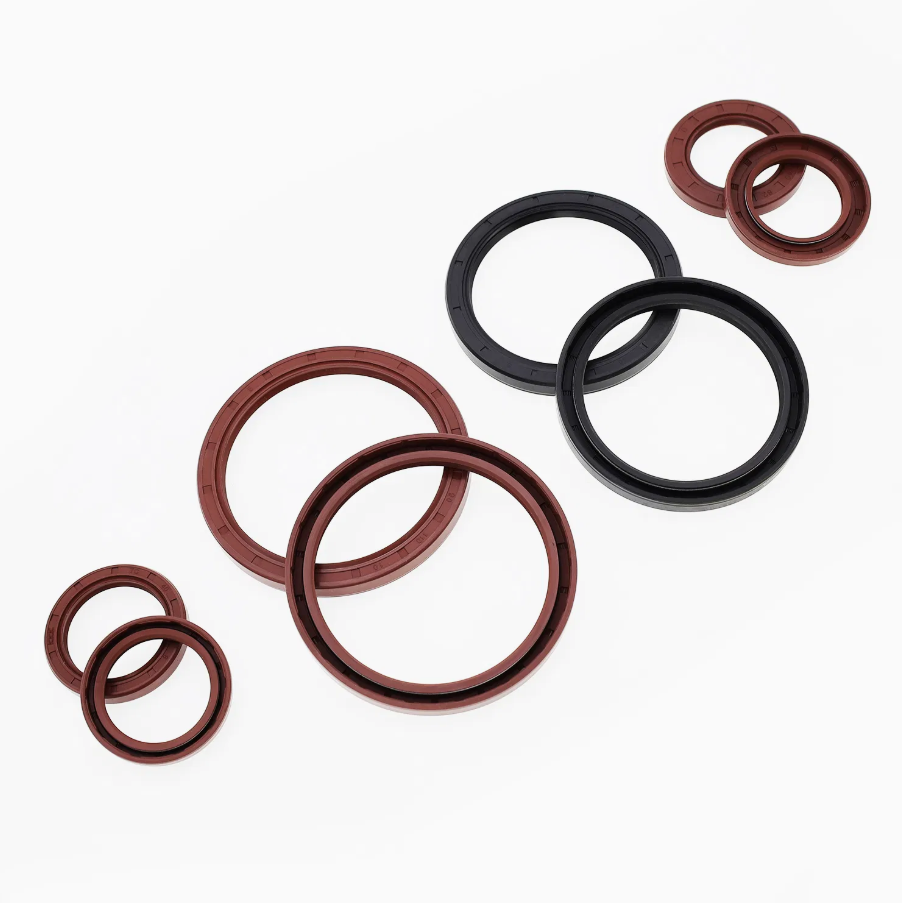

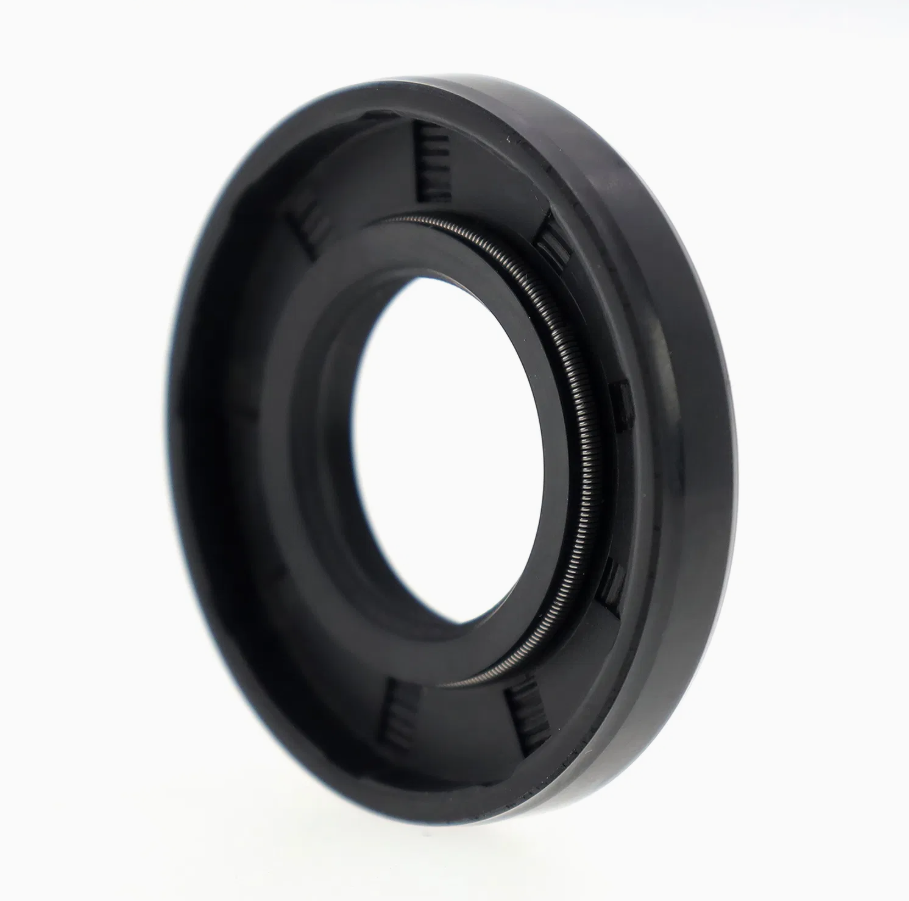

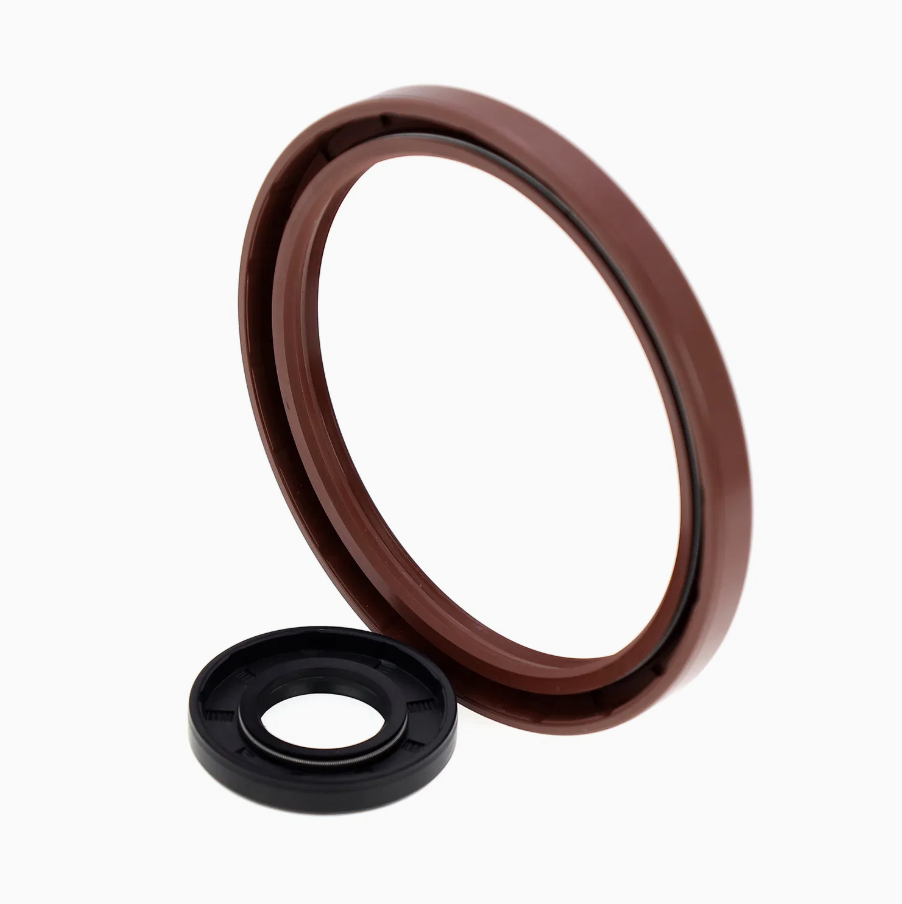

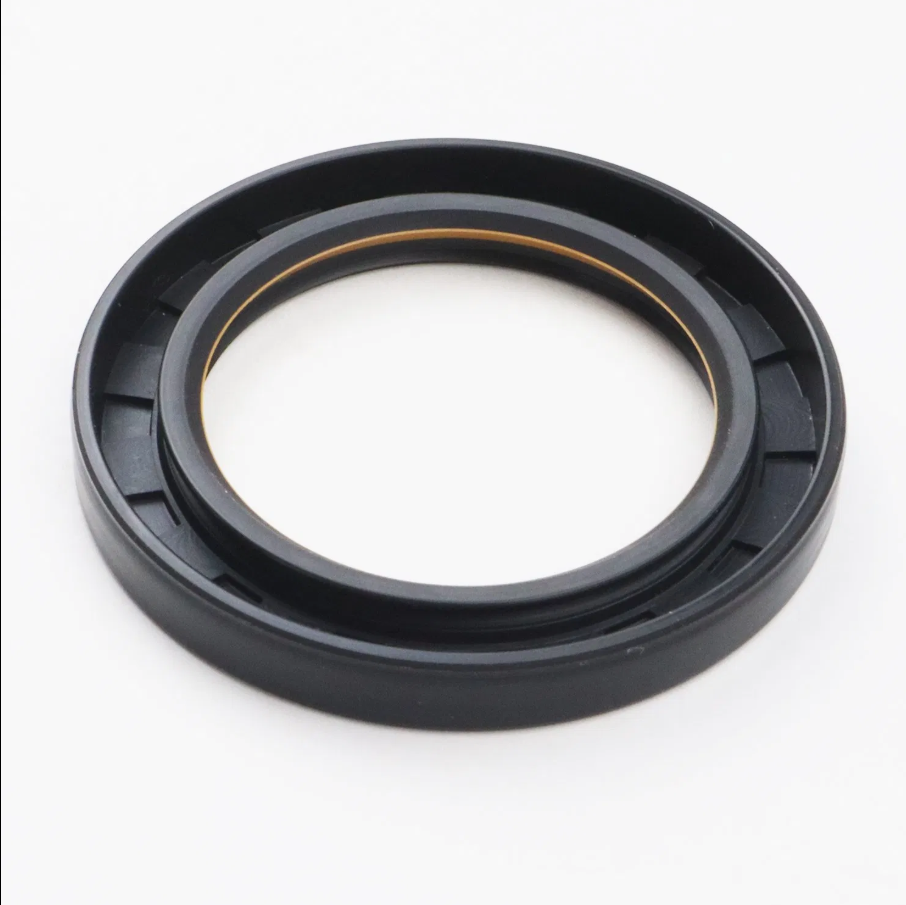

The metal-cased oil seal is a typical representative of oil seals. In everyday language, the term "oil seal" usually refers to this type. It is a rotary shaft lip seal primarily used to separate lubricated parts in a transmission from the external environment, preventing leakage of lubricating oil.

The word "cased" (or "skeleton") aptly describes its structural feature – the metal case acts like the rebar in reinforced concrete, providing reinforcement so that the seal maintains its shape and tension.

The sealing principle can be summarised as a "controlled leakage" oil film seal:

1,Oil film formation – a very thin layer of lubricating oil is maintained between the seal lip and the rotating shaft.

2,Surface tension effect – at the interface with air, the oil film forms a meniscus due to surface tension, preventing the working medium from leaking out.

3,Dynamic balance – sealing effectiveness depends on oil film thickness: too thick leads to leakage, too thin causes dry friction and premature wear.
Therefore, it is essential to apply lubricating oil to the seal during

installation and ensure the seal is perpendicular to the shaft centreline. Ideally, a slight seepage of lubricant occurs during operation, forming a stable oil film at the sealing face.

Metal-cased oil seals are widely used for sealing various rotating shafts:

Automotive / Motorcycles – crankshafts, camshafts, gearboxes, differentials, shock absorbers, engines, axles, front and rear wheels.
Industrial equipment – gearboxes, bearing housings, reducers, blowers, air compressors, pumps, motors.
Wind power – wind turbine gearbox seals.
Their two main functions are:

Preventing lubricating oil leakage.
Preventing ingress of contaminants such as sand, dust, moisture, etc.
Speed matching – use high-speed seals for high-speed shafts and low-speed seals for low-speed shafts; do not interchange.
Temperature compatibility – choose fluoroelastomer or silicone rubber for high temperatures; choose cold-resistant materials for low temperatures.
Pressure limitation – ordinary oil seals have poor pressure resistance (approx. 0.5 bar); for higher pressures, use a pressure-supporting backup ring.
Eccentricity control – excessive runout or misalignment will impair sealing performance.
Shaft surface finish – recommended Ra 0.2–0.8 μm; higher smoothness extends service life.
Shaft hardness – recommended ≥ HRC 45 to prevent axial scoring.
Installation orientation – ensure the seal is perpendicular to the shaft centreline.
Pre-lubrication – apply a small amount of lubricating oil to the lip before installation.
